Gibson SG Special 2017 T


Gibson SG Special 2017 T

  • ราคาปกติ : 33,000.00 ฿
  • ราคาพิเศษ : 29,700.00 ฿
  • ยี่ห้อ : Gibson
  • รุ่น : SG Special 2017 T
  • รายละเอียดสินค้า :
    Top Features
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •

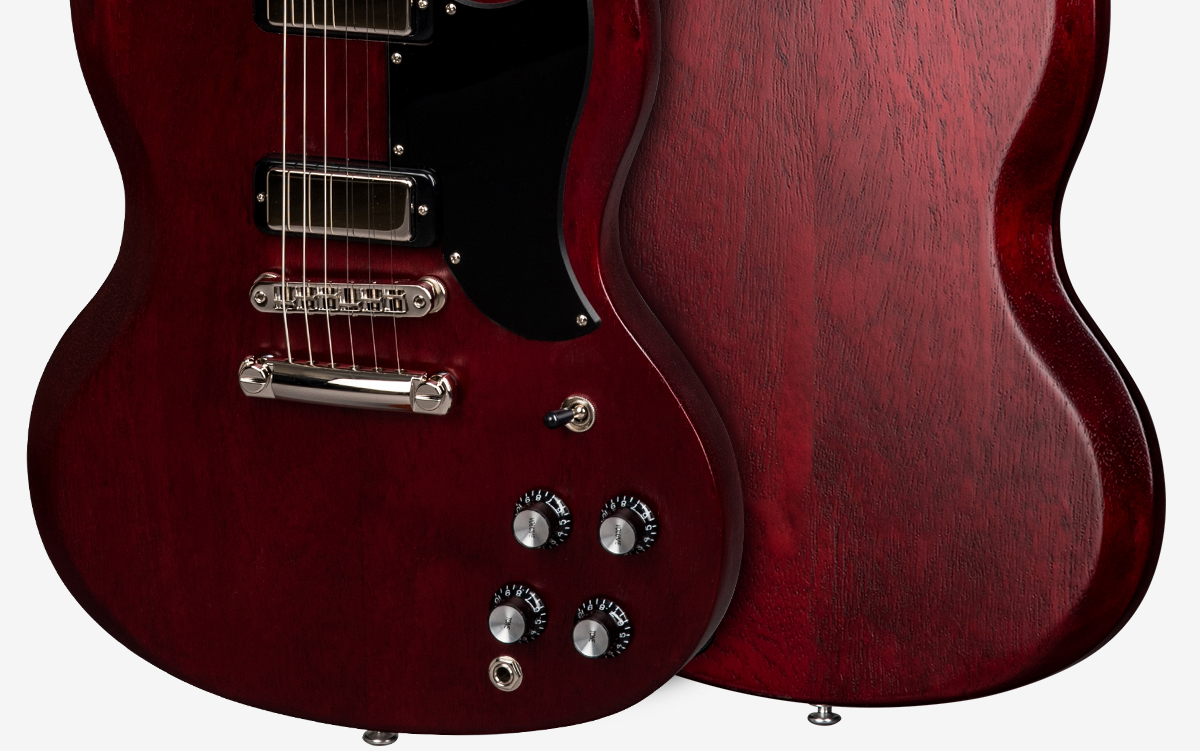

    Body

    Top
    Wood Species: Mahogany
    Pieces: Multi-Matched
    Grade: A
    Binding: None

    Back
    Weight
    Weight Relief: None
    Average Weight (body only): 4.2 lbs

    Materials Used
    Glue: Franklin Titebond 50


    Body Contour
    Carve: Flat

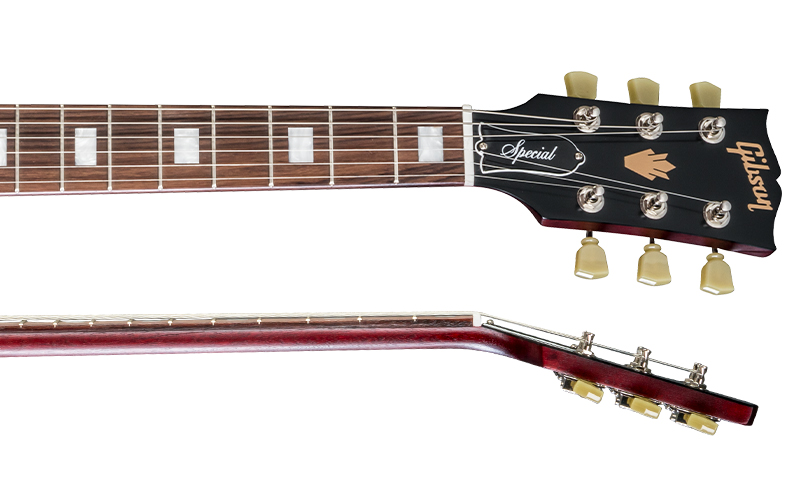

    Neck
    Neck
    Wood Species: Mahogany
    Pieces: 1

    Details
    Truss Rod: SG
    Profile: Slim taper
    Thickness at Fret 1: .800'
    Thickness at Fret 12: .875'
    Average Weight: 1 lbs 2.0 oz

    Peg Head
    Type: SP1-B
    Inlay: None
    Peg Head Binding: None
    Silkscreen: Gold 'Gibson' & Holly
    Headstock Angle: 17 degrees
    Neck Fit
    Joint Angle: 4.25 degrees
    Joint Angle Tolerance: 0 deg 0 min 15 sec
    Type: Mortis and Tenon
    Adhesive: Franklin Titebond 50
    Gauges Used: Pitch Height Gauge and Alignment Gauge

    Nut
    Style: Nut
    Material: Tektoid
    Width: 1.695'
    Slots: E: 0.046'
    A: 0.036'
    D: 0.026'
    G: 0.016'
    B: 0.011'
    e: 0.009'

    Fingerboard
    Wood Species: Rosewood
    Pieces: 1
    Shade: Medium
    Fingerboard Details
    Radius: 12'
    Frets: 24
    Nut/End of Board: 1.695' @ nut, 2.260' @ end of board
    Scale: 24 3/4
    Binding: None
    Side Dots (Color): White

    Fingerboard Inlays
    Style: Small Blocks
    Material: Acrylic
    Dimensions: large - .77 x .5' small - 1 x .25'
    Average Weight: 4.16 oz
    Finishes
    Satin Vintage Sunburst
    Color Code: SV
    Surface Texture: Satin
    Filler: Walnut
    Sealer: 1.5 - 2 mils
    Top: Vintage Sunburst
    Top Coat: Satin Lacquer / 30 Sheen, 3-4 mils
    Scraped: Fingerboard sides and Nut
    Satin Cherry
    Color Code: SC
    Surface Texture: Satin
    Filler: Walnut
    Sealer: 1.5 - 2 mils
    Top: Satin Cherry
    Top Coat: Satin Lacquer / 30 Sheen, 3-4 mils
    Scraped: Fingerboard sides and Nut

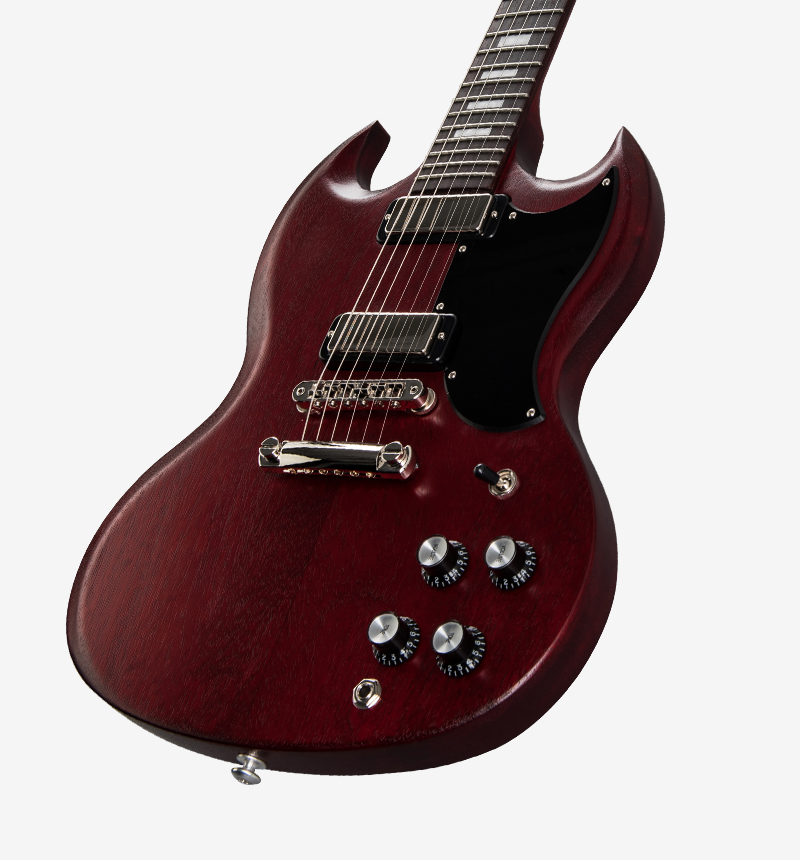

    Electronics

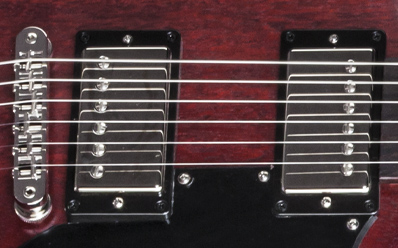

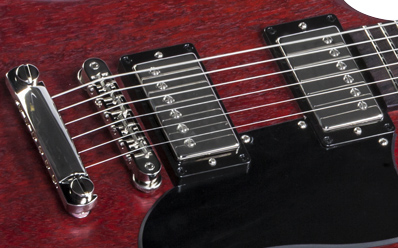

    Pickups Rhythm   Lead
    Style: 490R   490T
    Winds/Coil: Screw side/Slug side: 5250 / 5250   5250 / 5250
    Material of Wire (gauge): Copper (42)   Copper (42)
    Coil Dimensions (per coil): 2.61 x 0.68'   2.61 x 0.68'
    Coil Material: ABS   ABS
    Coil Winding Process: Machine Wound   Machine Wound
    Pole Piece Material: Nickel   Nickel
    Pole Piece Position from Nut: 18 5/8'   23 7/16'
    Slug Material: Nickel   Nickel
    Slug Dimensions (diameter x length): 0.187 x 0.489'   0.187 x 0.489'
    Magnet Material: Alnico II   Alnico II
    Magnet Position from Nut: 19'   23 1/8'
    Magnet Dimensions: 2.5' x 0.5'   2.5 x 0.5'
    Polarities: Screw side is the south pole of magnet   Screw side is the south pole of magnet
    Cover: Nickel   Nickel
    Qfactor: 5.62   5.62
    ResistanceDC: 7803 Ohms   7803 Ohms
    Resonant Frequency: 2715.71 Hz   2715.71 Hz
    Tonal & Resonant Advancements: Better Hum canceling w/rev polarity Better Hum canceling w/rev polarity

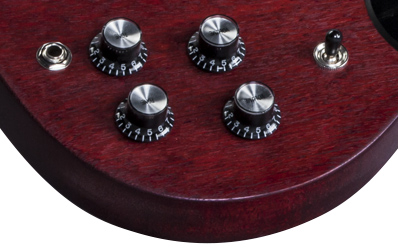

    Control Pocket Assembly Lead Volume Rhythm Volume
    Type: 500K Non-Linear 500K Non-Linear
    Peak Voltage: 500V 500V
    Range: 0-500K 0-500K
    Power Rating: 1/4 watt above 100K ohms 1/4 watt above 100K ohms
    Resistance Tolerance: +/- 20% +/- 20%
    Minimum Resistance: 200 ohms 200 ohms

      Lead Tone Rhythm Tone
    Type: 500K Non-Linear 500K Non-Linear
    Peak Voltage: 500V 500V
    Range: 0-500K 0-500K
    Power Rating: 1/4 watt above 100K ohms 1/4 watt above 100K ohms
    Resistance Tolerance: +/- 20% +/- 20%
    Minimum Resistance: 200 ohms 200 ohms

    Capacitors: Lead Value Rhythm Value
      .022uF .022uF

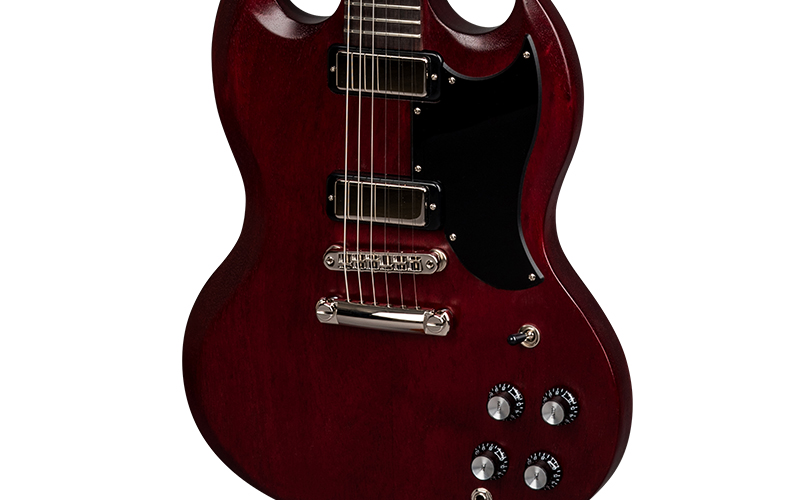

    Hardware


    Tuning Keys
    Style: Vintage Style Keystone
    Material: Zamak
    Weight: 1.0oz

    Tuning Keys Details
    Tuning Ratio: 14:01
    Gear Type: Worm
    What is allowable turn: +/- 4 degrees
    Plating specs: Nickel
    Part numbers: 430-14139 / 40

    String Dimensions
    E: 0.046'
    A: 0.036'
    D: 0.026'
    G: 0.016'
    B: 0.011'
    e: 0.009'

    Bridge
    Style: Tune-o-matic
    Material: Aluminum
    Plating Specs: Nickel
    Part number: 430-14453
    Weight: .96 oz




    Dimensions of String Slots
    E: 0.058'
    A: 0.048'
    D: 0.038'
    G: 0.028'
    B: 0.019''
    e: 0.014'

    Tailpiece
    Style: Stop Bar
    Compensated: No
    Material: Aluminum
    Plating Specs: Nickel
    Part number: 430-14453
    Weight: 1.12 oz

    Output Jack
    Style: 1/4' mono gold plated positive contact

    Jack Plate
    Style: None
    Material: n/a
    Part Number: n/a
    Weight: n/a

    Strap Buttons
    Material: Aluminum
    Plating Specs: None
    Part numbers: 430-19160 / 60E
    Weight: 0.14 oz

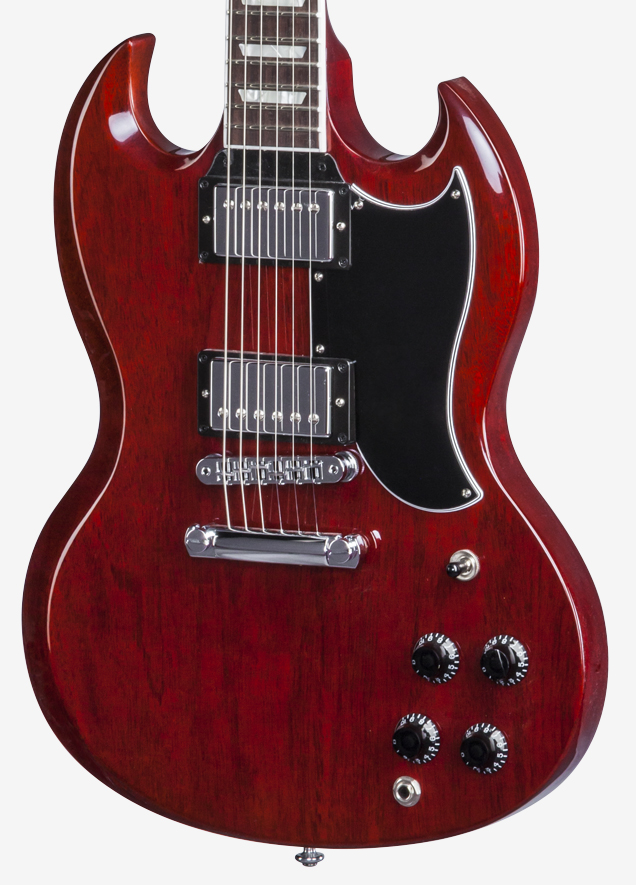

    Plastics



    Pick Guard
    Style: SG Style
    Part Number: SV: 380-12970B - SC: 380-12970C

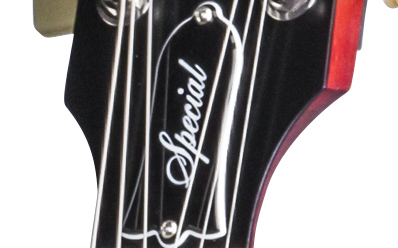

    Truss Rod Cover
    Style: Black/White bell, Stamp 'Special'
    Part Number: 430-19406

    Knobs
    Style: SV: Black w/ Gold Insert - SC: Black w/ Silver Insert
    Part Number: SV: 430-19211 / 12 - SC: 430-149200 / 01

    Dial Pointers
    Yes/No: No




    Control Plate(s) (Backplate Cover)
    Style: SS infused polycarbonate for ESD protection
    Part Number: 380-12210

    Control Plate(s) (SwitchPlate Cover)
    Style: None
    Part Number: n/a

    Switch Washer
    Style: None
    Part Number: n/a

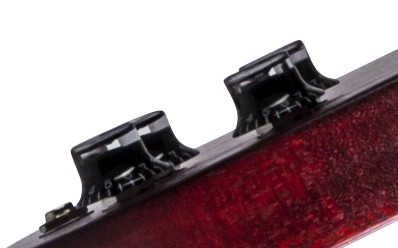

    Trim Rings
    Style: SV: Black Humbucker Low/High - SC: Cream Humbucker Low/High
    Part Number: SV: 440-13884 / 51 - SC: 430-13894 / 93
    Accessories
    Case
    Style: Gig Bag
    Color: Black w/ White Logo

    Strap Locks: None
    Tools: Gibson USA Guitar Strap, Gibson USA Polishing Cloth, Truss rod wrench, 2.5mm adjustment wrench

    Manual: Gibson USA's owners
    COA/Other: None
